Introdução

Game com Three.js, explorando um pouco desta lib que ajuda na criação de games e animações usando o Javascript e que roda no navegador.

Este post é apenas um pequeno exemplo de um script de um game 3D usando apenas Javascript com o aucilixo da lib do Three.js!
Com a biblioteca Three.js podemos transformar o navegador em um verdadeiro palco para experiências 3D incríveis.
Usar o Three.js para fazer Games é só um exemplo divertido de como a web pode ganhar vida com luzes, sombras e efeitos interativos, tudo em tempo real.

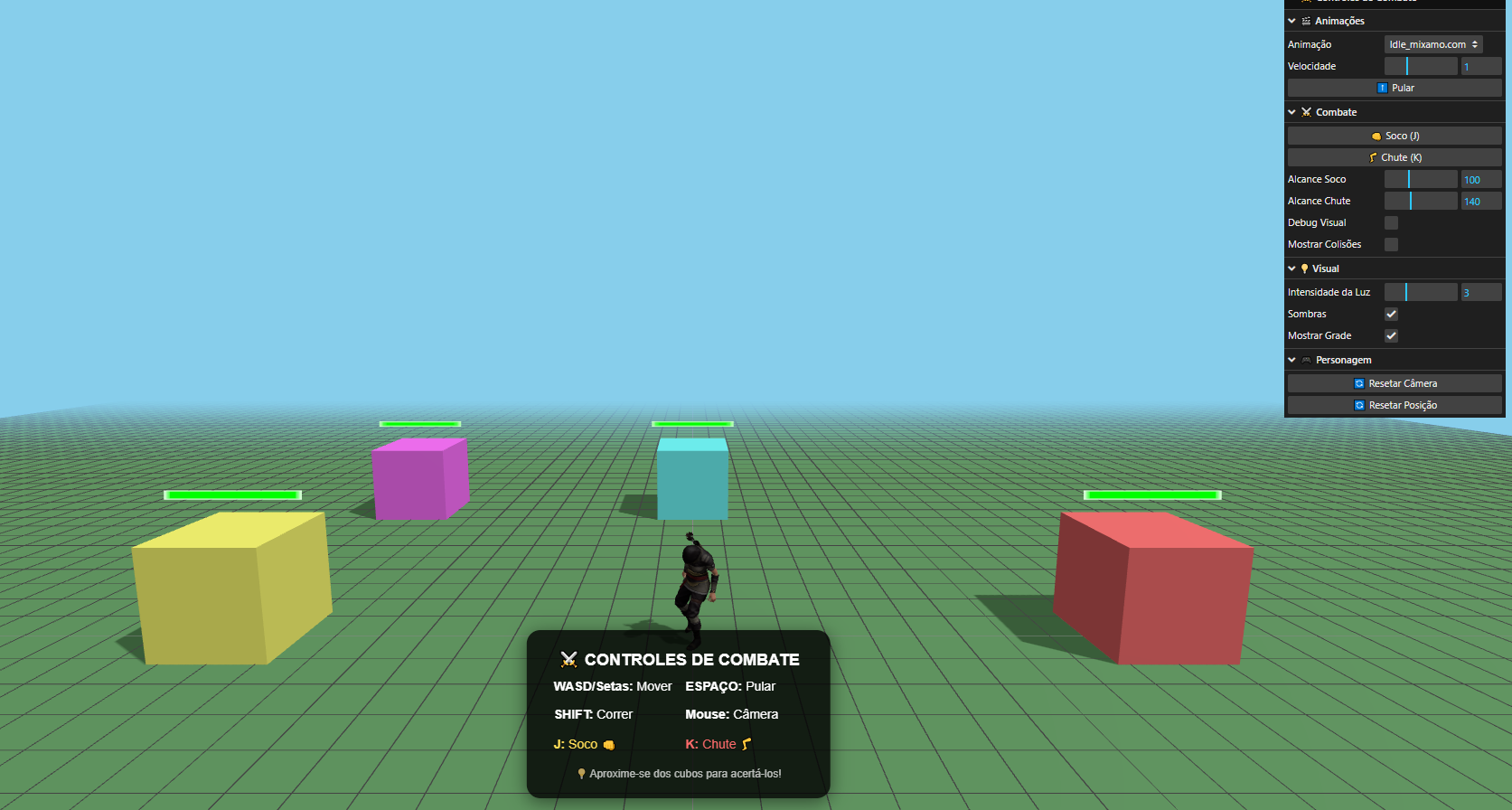

Você pode visualizar o jogo no link abaixo:

Game Exemplo com TreeJs

Scripts utilizado (html):

<!DOCTYPE html>
<html lang="pt-BR">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Game Three Js - Testes</title>
    <link rel="stylesheet" href="/css/main.css">
</head>
<body>
    <script type="module" src="main.js"></script>
</body>
</html>









Scripts utilizado (Javascript):








import * as THREE from "three";


import { OrbitControls } from "three/addons/controls/OrbitControls.js";


import { FBXLoader } from "three/addons/loaders/FBXLoader.js";


import { GUI } from "three/addons/libs/lil-gui.module.min.js";


// ===================================


// CONFIGURAÇÕES GLOBAIS


// ===================================


const CONFIG = {


  // Movimento


  MOVEMENT_SPEED: 200,


  ROTATION_SPEED: 8,


  RUN_SPEED_MULTIPLIER: 1.5,


  // Física do pulo


  JUMP_VELOCITY: 70,


  GRAVITY: -180,


  MAX_FALL_SPEED: -300,


  GROUND_LEVEL: 0,


  COYOTE_TIME: 0.15,


  // Animação


  ANIMATION_FADE_DURATION: 0.15,


  JUMP_UP_THRESHOLD: 10,


  JUMP_DOWN_THRESHOLD: -10,


  // Câmera


  CAMERA_FOV: 65,


  CAMERA_DISTANCE: 280,


  CAMERA_HEIGHT: 140,


  CAMERA_FOLLOW_SMOOTHNESS: 0.08,


  // Visual


  MODEL_SCALE: 0.3,


  SHADOW_MAP_SIZE: 2048,


  // Sistema de Combate com Física


  ATTACK: {


    PUNCH: {


      COOLDOWN: 0.5,


      MIN_RANGE: 20, // Distância mínima


      MAX_RANGE: 100, // Distância máxima


      ANGLE: Math.PI / 3, // Ângulo do cone


      FORCE: 250, // Força do impulso


      KNOCKBACK: 0.8, // Multiplicador de knockback


      HIT_WINDOW: 0.25, // Quando o hit acontece


      DURATION: 0.6,


      DAMAGE: 15,


    },


    KICK: {


      COOLDOWN: 0.8,


      MIN_RANGE: 30,


      MAX_RANGE: 140,


      ANGLE: Math.PI / 2.5,


      FORCE: 450,


      KNOCKBACK: 1.5,


      HIT_WINDOW: 0.35,


      DURATION: 0.9,


      DAMAGE: 25,


    },


  },


  // Física dos objetos


  PHYSICS: {


    FRICTION: 0.92, // Atrito do chão


    AIR_RESISTANCE: 0.98, // Resistência do ar


    BOUNCE: 0.3, // Quão elástico é o objeto


    ROTATION_DAMPING: 0.95, // Amortecimento da rotação


    MIN_VELOCITY: 0.01, // Velocidade mínima antes de parar


  },


  // Colisão


  CHARACTER_RADIUS: 30, // Raio de colisão do personagem


  OBJECT_RADIUS: 35, // Raio de colisão dos cubos (metade da diagonal)


};


// ===================================


// MÓDULO: OBJETO COM FÍSICA


// ===================================


class PhysicsObject {


  constructor(mesh) {


    this.mesh = mesh;


    this.velocity = new THREE.Vector3(0, 0, 0);


    this.angularVelocity = new THREE.Vector3(0, 0, 0);


    this.mass = 1.0;


    this.isGrounded = false;


    this.health = 100;


    this.maxHealth = 100;


    // Cria barra de vida


    this.createHealthBar();


  }


  createHealthBar() {


    const barWidth = 60;


    const barHeight = 4;


    const canvas = document.createElement("canvas");


    canvas.width = 128;


    canvas.height = 32;


    const ctx = canvas.getContext("2d");


    const texture = new THREE.CanvasTexture(canvas);


    const material = new THREE.SpriteMaterial({ map: texture });


    this.healthBar = new THREE.Sprite(material);


    this.healthBar.scale.set(barWidth, barHeight, 1);


    this.mesh.add(this.healthBar);


    this.healthBar.position.set(0, 40, 0);


    this.healthBarCanvas = canvas;


    this.healthBarCtx = ctx;


    this.updateHealthBar();


  }


  updateHealthBar() {


    const ctx = this.healthBarCtx;


    const canvas = this.healthBarCanvas;


    ctx.clearRect(0, 0, canvas.width, canvas.height);


    // Fundo


    ctx.fillStyle = "rgba(0, 0, 0, 0.5)";


    ctx.fillRect(0, 0, canvas.width, canvas.height);


    // Barra de vida


    const healthPercent = this.health / this.maxHealth;


    const barWidth = canvas.width * healthPercent;


    // Cor baseada na vida


    if (healthPercent > 0.6) {


      ctx.fillStyle = "#00ff00";


    } else if (healthPercent > 0.3) {


      ctx.fillStyle = "#ffff00";


    } else {


      ctx.fillStyle = "#ff0000";


    }


    ctx.fillRect(0, 0, barWidth, canvas.height);


    // Borda


    ctx.strokeStyle = "#ffffff";


    ctx.lineWidth = 2;


    ctx.strokeRect(1, 1, canvas.width - 2, canvas.height - 2);


    this.healthBar.material.map.needsUpdate = true;


  }


  applyForce(force, point) {


    // Aplica força linear


    this.velocity.add(force.clone().multiplyScalar(1 / this.mass));


    // Aplica torque (rotação) baseado no ponto de impacto


    const centerToPoint = point.clone().sub(this.mesh.position);


    const torque = new THREE.Vector3().crossVectors(centerToPoint, force);


    this.angularVelocity.add(torque.multiplyScalar(0.01 / this.mass));


  }


  takeDamage(amount) {


    this.health = Math.max(0, this.health - amount);


    this.updateHealthBar();


    if (this.health <= 0) {


      this.onDestroy();


    }


  }


  onDestroy() {


    // Efeito de destruição


    const material = this.mesh.material;


    const originalColor = material.color.clone();


    let opacity = 1;


    const fadeOut = () => {


      opacity -= 0.05;


      material.opacity = opacity;


      material.transparent = true;


      if (opacity > 0) {


        requestAnimationFrame(fadeOut);


      } else {


        this.mesh.visible = false;


        // Regenera após 5 segundos


        setTimeout(() => this.respawn(), 5000);


      }


    };


    fadeOut();


  }


  respawn() {


    this.health = this.maxHealth;


    this.velocity.set(0, 0, 0);


    this.angularVelocity.set(0, 0, 0);


    this.mesh.material.opacity = 1;


    this.mesh.material.transparent = false;


    this.mesh.visible = true;


    this.mesh.rotation.set(0, 0, 0);


    this.updateHealthBar();


  }


  update(delta) {


    // Aplica gravidade


    if (!this.isGrounded) {


      this.velocity.y += CONFIG.GRAVITY * delta;


    }


    // Aplica velocidade


    this.mesh.position.add(this.velocity.clone().multiplyScalar(delta));


    // Aplica rotação angular


    this.mesh.rotation.x += this.angularVelocity.x * delta;


    this.mesh.rotation.y += this.angularVelocity.y * delta;


    this.mesh.rotation.z += this.angularVelocity.z * delta;


    // Colisão com o chão


    const groundY = 25; // Altura do centro do cubo


    if (this.mesh.position.y <= groundY) {


      this.mesh.position.y = groundY;


      // Bounce


      if (Math.abs(this.velocity.y) > 5) {


        this.velocity.y *= -CONFIG.PHYSICS.BOUNCE;


      } else {


        this.velocity.y = 0;


        this.isGrounded = true;


      }


    } else {


      this.isGrounded = false;


    }


    // Aplicar atrito


    if (this.isGrounded) {


      this.velocity.x *= CONFIG.PHYSICS.FRICTION;


      this.velocity.z *= CONFIG.PHYSICS.FRICTION;


      this.angularVelocity.multiplyScalar(CONFIG.PHYSICS.ROTATION_DAMPING);


    } else {


      // Resistência do ar


      this.velocity.x *= CONFIG.PHYSICS.AIR_RESISTANCE;


      this.velocity.z *= CONFIG.PHYSICS.AIR_RESISTANCE;


    }


    // Para o objeto se estiver muito devagar


    if (this.velocity.length() < CONFIG.PHYSICS.MIN_VELOCITY) {


      this.velocity.set(0, this.velocity.y, 0);


    }


    if (this.angularVelocity.length() < 0.01) {


      this.angularVelocity.set(0, 0, 0);


    }


    // Mantém a barra de vida sempre virada para a câmera


    if (this.healthBar) {


      this.healthBar.quaternion.copy(this.mesh.quaternion);


    }


  }


}


// ===================================


// MÓDULO: GERENCIADOR DE UI


// ===================================


class UIManager {


  constructor() {


    this.loadingScreen = null;


    this.combatFeedback = null;


    this.hitIndicator = null;


  }


  createLoadingScreen() {


    const loader = document.createElement("div");


    loader.id = "loading-screen";


    loader.style.cssText = `


      position: fixed;


      top: 0;


      left: 0;


      width: 100%;


      height: 100%;


      background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);


      display: flex;


      flex-direction: column;


      align-items: center;


      justify-content: center;


      color: white;


      font-family: Arial, sans-serif;


      z-index: 1000;


      transition: opacity 0.5s;


    `;


    loader.innerHTML = `


      <div style="text-align: center;">


        <h1 style="font-size: 3em; margin: 0; text-shadow: 2px 2px 4px rgba(0,0,0,0.3);">⚔️</h1>


        <h2 style="margin: 20px 0;">Sistema de Combate</h2>


        <div id="loading-progress" style="


          width: 300px;


          height: 8px;


          background: rgba(255,255,255,0.2);


          border-radius: 10px;


          overflow: hidden;


          margin: 20px 0;


        ">


          <div id="loading-bar" style="


            width: 0%;


            height: 100%;


            background: white;


            transition: width 0.3s;


            border-radius: 10px;


          "></div>


        </div>


        <p id="loading-text" style="font-size: 0.9em; opacity: 0.8;">Preparando ambiente...</p>


      </div>


    `;


    document.body.appendChild(loader);


    this.loadingScreen = loader;


  }


  updateLoadingProgress(percent, text) {


    const bar = document.getElementById("loading-bar");


    const textEl = document.getElementById("loading-text");


    if (bar) bar.style.width = `${percent}%`;


    if (textEl) textEl.textContent = text;


  }


  hideLoadingScreen() {


    if (this.loadingScreen) {


      this.loadingScreen.style.opacity = "0";


      setTimeout(() => this.loadingScreen.remove(), 500);


    }


  }


  createInstructions() {


    const instructions = document.createElement("div");


    instructions.style.cssText = `


      position: fixed;


      bottom: 20px;


      left: 50%;


      transform: translateX(-50%);


      background: rgba(0,0,0,0.8);


      color: white;


      padding: 20px 30px;


      border-radius: 15px;


      font-family: Arial, sans-serif;


      font-size: 14px;


      text-align: center;


      pointer-events: none;


      z-index: 100;


      box-shadow: 0 4px 20px rgba(0,0,0,0.5);


    `;


    instructions.innerHTML = `


      <div style="margin-bottom: 10px; font-size: 18px; font-weight: bold;">⚔️ CONTROLES DE COMBATE</div>


      <div style="display: grid; grid-template-columns: 1fr 1fr; gap: 15px; text-align: left;">


        <div><strong>WASD/Setas:</strong> Mover</div>


        <div><strong>ESPAÇO:</strong> Pular</div>


        <div><strong>SHIFT:</strong> Correr</div>


        <div><strong>Mouse:</strong> Câmera</div>


        <div style="color: #ffdd57;"><strong>J:</strong> Soco 👊</div>


        <div style="color: #ff6b6b;"><strong>K:</strong> Chute 🦵</div>


      </div>


      <div style="margin-top: 15px; font-size: 12px; opacity: 0.7;">


        💡 Aproxime-se dos cubos para acertá-los!


      </div>


    `;


    document.body.appendChild(instructions);


    setTimeout(() => {


      instructions.style.transition = "opacity 1s";


      instructions.style.opacity = "0";


      setTimeout(() => instructions.remove(), 1000);


    }, 15000);


  }


  createCombatFeedback() {


    const feedback = document.createElement("div");


    feedback.id = "combat-feedback";


    feedback.style.cssText = `


      position: fixed;


      top: 50%;


      left: 50%;


      transform: translate(-50%, -50%);


      font-family: 'Arial Black', sans-serif;


      font-size: 64px;


      font-weight: bold;


      color: white;


      text-shadow:


        3px 3px 0px rgba(0,0,0,0.8),


        -1px -1px 0px rgba(0,0,0,0.8),


        1px -1px 0px rgba(0,0,0,0.8),


        -1px 1px 0px rgba(0,0,0,0.8);


      pointer-events: none;


      z-index: 200;


      opacity: 0;


      transition: all 0.1s;


    `;


    document.body.appendChild(feedback);


    this.combatFeedback = feedback;


  }


  createHitIndicator() {


    const indicator = document.createElement("div");


    indicator.id = "hit-indicator";


    indicator.style.cssText = `


      position: fixed;


      top: 20px;


      right: 20px;


      background: rgba(0,0,0,0.8);


      color: white;


      padding: 15px 25px;


      border-radius: 10px;


      font-family: Arial, sans-serif;


      font-size: 16px;


      pointer-events: none;


      z-index: 150;


      display: none;


    `;


    document.body.appendChild(indicator);


    this.hitIndicator = indicator;


  }


  showCombatHit(type, damage, distance, combo) {


    if (!this.combatFeedback) this.createCombatFeedback();


    const messages = {


      punch: ["💥 POW!", "👊 BAM!", "🔥 HIT!"],


      kick: ["💥 BOOM!", "🦵 CRASH!", "⚡ SMASH!"],


    };


    const msg =


      messages[type][Math.floor(Math.random() * messages[type].length)];


    this.combatFeedback.innerHTML = `


      ${msg}<br>


      <span style="font-size: 32px;">${damage} DMG</span>


      ${


        combo > 1


          ? `<br><span style="font-size: 28px; color: #ffdd57;">x${combo} COMBO!</span>`


          : ""


      }


    `;


    this.combatFeedback.style.color = type === "kick" ? "#ff6b6b" : "#ffdd57";


    this.combatFeedback.style.opacity = "1";


    this.combatFeedback.style.transform = "translate(-50%, -50%) scale(1.2)";


    setTimeout(() => {


      this.combatFeedback.style.opacity = "0";


      this.combatFeedback.style.transform = "translate(-50%, -50%) scale(0.8)";


    }, 600);


    // Mostra indicador de distância


    this.showHitInfo(type, distance, combo);


  }


  showCombatMiss(type, reason = "") {


    if (!this.combatFeedback) this.createCombatFeedback();


    const messages = {


      "too-far": "🎯 MUITO LONGE!",


      "too-close": "⚠️ MUITO PERTO!",


      "wrong-angle": "↔️ FORA DE ALCANCE!",


      default: type === "punch" ? "👊 ERROU..." : "🦵 ERROU...",


    };


    this.combatFeedback.textContent = messages[reason] || messages["default"];


    this.combatFeedback.style.color = "#888888";


    this.combatFeedback.style.fontSize = "48px";


    this.combatFeedback.style.opacity = "0.7";


    this.combatFeedback.style.transform = "translate(-50%, -50%) scale(1)";


    setTimeout(() => {


      this.combatFeedback.style.opacity = "0";


    }, 400);


  }


  showHitInfo(type, distance, combo) {


    if (!this.hitIndicator) this.createHitIndicator();


    this.hitIndicator.innerHTML = `


      <div style="font-weight: bold; margin-bottom: 5px;">${


        type === "punch" ? "👊 SOCO" : "🦵 CHUTE"


      }</div>


      <div>Distância: ${Math.round(distance)}u</div>


      ${combo > 1 ? `<div style="color: #ffdd57;">Combo: x${combo}</div>` : ""}


    `;


    this.hitIndicator.style.display = "block";


    setTimeout(() => {


      this.hitIndicator.style.display = "none";


    }, 2000);


  }


}


// ===================================


// MÓDULO: SISTEMA DE COMBATE


// ===================================


class CombatSystem {


  constructor(model, scene, uiManager) {


    this.model = model;


    this.scene = scene;


    this.ui = uiManager;


    this.attackState = {


      punch: { canAttack: true, cooldownTimer: 0 },


      kick: { canAttack: true, cooldownTimer: 0 },


    };


    this.physicsObjects = [];


    this.comboCounter = 0;


    this.lastAttackTime = 0;


    // Debug visual


    this.debugMesh = null;


    this.createDebugVisualization();


  }


  createDebugVisualization() {


    // Cria um cone para visualizar o alcance do ataque (debug)


    const geometry = new THREE.ConeGeometry(1, 1, 16);


    const material = new THREE.MeshBasicMaterial({


      color: 0x00ff00,


      transparent: true,


      opacity: 0.2,


      wireframe: true,


    });


    this.debugMesh = new THREE.Mesh(geometry, material);


    this.debugMesh.visible = false;


    this.scene.add(this.debugMesh);


  }


  addPhysicsObject(physicsObj) {


    this.physicsObjects.push(physicsObj);


  }


  tryAttack(type, isJumping) {


    if (!this.model || isJumping) return false;


    const state = this.attackState[type];


    if (!state || !state.canAttack) return false;


    const config = CONFIG.ATTACK[type.toUpperCase()];


    // Bloqueia novo ataque


    state.canAttack = false;


    state.cooldownTimer = config.COOLDOWN;


    // Atualiza combo


    const now = Date.now();


    if (now - this.lastAttackTime < 1500) {


      this.comboCounter++;


    } else {


      this.comboCounter = 1;


    }


    this.lastAttackTime = now;


    // Agenda o hit no momento apropriado da animação


    setTimeout(


      () => this.performAttack(type, config),


      config.HIT_WINDOW * 1000


    );


    return true;


  }


  performAttack(type, config) {


    if (!this.model) return;


    // Posição e direção do personagem


    const yaw = this.model.rotation.y;


    const forward = new THREE.Vector3(Math.sin(yaw), 0, Math.cos(yaw));


    const origin = this.model.position.clone();


    origin.y += 50; // Altura aproximada do soco/chute


    // Detecta hits


    const result = this.detectHits(origin, forward, config);


    if (result.hits.length > 0) {


      result.hits.forEach((hit) => {


        this.applyHitEffects(hit, config, type);


      });


      const firstHit = result.hits[0];


      this.ui.showCombatHit(


        type,


        config.DAMAGE * this.comboCounter,


        firstHit.distance,


        this.comboCounter


      );


    } else {


      this.ui.showCombatMiss(type, result.reason);


    }


    // Visualização debug (temporária)


    this.showDebugVisualization(


      origin,


      forward,


      config,


      result.hits.length > 0


    );


  }


  detectHits(origin, forward, config) {


    const hits = [];


    let closestDistance = Infinity;


    let reason = "default";


    this.physicsObjects.forEach((physObj) => {


      if (!physObj.mesh.visible) return;


      const toObj = physObj.mesh.position.clone().sub(origin);


      const horizontal = new THREE.Vector3(toObj.x, 0, toObj.z);


      const dist = horizontal.length();


      // Verifica distância mínima


      if (dist < config.MIN_RANGE) {


        if (dist < closestDistance) {


          closestDistance = dist;


          reason = "too-close";


        }


        return;


      }


      // Verifica distância máxima


      if (dist > config.MAX_RANGE) {


        if (dist < closestDistance) {


          closestDistance = dist;


          reason = "too-far";


        }


        return;


      }


      // Verifica ângulo


      const angle = Math.acos(


        Math.max(-1, Math.min(1, forward.dot(horizontal.normalize())))


      );


      if (angle > config.ANGLE / 2) {


        if (dist < closestDistance) {


          closestDistance = dist;


          reason = "wrong-angle";


        }


        return;


      }


      // Hit válido!


      hits.push({


        physicsObject: physObj,


        distance: dist,


        direction: horizontal.normalize(),


        angle: angle,


        impactPoint: physObj.mesh.position.clone(),


      });


    });


    // Ordena por distância (mais próximo primeiro)


    hits.sort((a, b) => a.distance - b.distance);


    return { hits, reason };


  }


  applyHitEffects(hit, config, type) {


    const { physicsObject, distance, direction, impactPoint } = hit;


    // Calcula força baseada na distância (mais perto = mais força)


    const distanceFactor =


      1 - (distance - config.MIN_RANGE) / (config.MAX_RANGE - config.MIN_RANGE);


    const comboMultiplier = 1.0 + (this.comboCounter - 1) * 0.3;


    const totalForce =


      config.FORCE * config.KNOCKBACK * distanceFactor * comboMultiplier;


    // Aplica força com componente vertical


    const forceVector = direction.clone().multiplyScalar(totalForce);


    forceVector.y = totalForce * 0.4; // Lança o objeto para cima


    physicsObject.applyForce(forceVector, impactPoint);


    // Aplica dano


    const damage = Math.round(config.DAMAGE * comboMultiplier);


    physicsObject.takeDamage(damage);


    // Efeito visual de impacto


    this.createImpactEffect(impactPoint, type);


    console.log(


      `💥 ${type.toUpperCase()} | Dist: ${Math.round(


        distance


      )}u | Força: ${Math.round(totalForce)} | DMG: ${damage} | Combo: x${


        this.comboCounter


      }`


    );


  }


  createImpactEffect(position, type) {


    // Cria partículas no ponto de impacto


    const particleCount = 15;


    const geometry = new THREE.SphereGeometry(2, 4, 4);


    const color = type === "kick" ? 0xff6b6b : 0xffdd57;


    const material = new THREE.MeshBasicMaterial({ color: color });


    for (let i = 0; i < particleCount; i++) {


      const particle = new THREE.Mesh(geometry, material.clone());


      particle.position.copy(position);


      const velocity = new THREE.Vector3(


        (Math.random() - 0.5) * 100,


        Math.random() * 80 + 40,


        (Math.random() - 0.5) * 100


      );


      this.scene.add(particle);


      // Anima partícula


      const startTime = Date.now();


      const animate = () => {


        const elapsed = (Date.now() - startTime) / 1000;


        if (elapsed < 0.5) {


          particle.position.add(velocity.clone().multiplyScalar(0.016));


          velocity.y -= 300 * 0.016; // Gravidade


          particle.scale.multiplyScalar(0.95);


          particle.material.opacity = 1 - elapsed * 2;


          particle.material.transparent = true;


          requestAnimationFrame(animate);


        } else {


          this.scene.remove(particle);


          particle.geometry.dispose();


          particle.material.dispose();


        }


      };


      animate();


    }


  }


  showDebugVisualization(origin, forward, config, hit) {


    if (!this.debugMesh) return;


    // Configura o cone de debug


    const radius = Math.tan(config.ANGLE / 2) * config.MAX_RANGE;


    this.debugMesh.scale.set(radius, config.MAX_RANGE, radius);


    this.debugMesh.position.copy(origin);


    this.debugMesh.rotation.x = Math.PI / 2;


    this.debugMesh.rotation.z = -Math.atan2(forward.x, forward.z);


    this.debugMesh.material.color.setHex(hit ? 0x00ff00 : 0xff0000);


    this.debugMesh.visible = true;


    // Esconde após 200ms


    setTimeout(() => {


      if (this.debugMesh) this.debugMesh.visible = false;


    }, 200);


  }


  update(delta) {


    // Atualiza cooldowns


    Object.keys(this.attackState).forEach((type) => {


      const state = this.attackState[type];


      if (state.cooldownTimer > 0) {


        state.cooldownTimer -= delta;


        if (state.cooldownTimer <= 0) {


          state.cooldownTimer = 0;


          state.canAttack = true;


        }


      }


    });


    // Reset combo


    if (Date.now() - this.lastAttackTime > 2000) {


      this.comboCounter = 0;


    }


    // Atualiza física dos objetos


    this.physicsObjects.forEach((physObj) => {


      physObj.update(delta);


    });


  }


}


// ===================================


// MÓDULO: GERENCIADOR DE ANIMAÇÕES


// ===================================


class AnimationManager {


  constructor(mixer) {


    this.mixer = mixer;


    this.actions = {};


    this.activeAction = null;


    this.currentActionName = "";


  }


  addAction(name, clip) {


    this.actions[name] = this.mixer.clipAction(clip);


  }


  play(name, loop = true) {


    if (!this.actions[name] || this.currentActionName === name) return;


    const newAction = this.actions[name];


    if (loop) {


      newAction.loop = THREE.LoopRepeat;


      newAction.clampWhenFinished = false;


    } else {


      newAction.loop = THREE.LoopOnce;


      newAction.clampWhenFinished = true;


    }


    if (this.activeAction && this.activeAction !== newAction) {


      this.activeAction.fadeOut(CONFIG.ANIMATION_FADE_DURATION);


    }


    newAction.reset().fadeIn(CONFIG.ANIMATION_FADE_DURATION).play();


    this.activeAction = newAction;


    this.currentActionName = name;


  }


  findAndPlay(partialName, loop = true) {


    const name = Object.keys(this.actions).find((k) =>


      k.toLowerCase().includes(partialName.toLowerCase())


    );


    if (name) this.play(name, loop);


  }


  update(delta) {


    if (this.mixer) {


      this.mixer.update(delta);


    }


  }


  getActionNames() {


    return Object.keys(this.actions);


  }


  setSpeed(speed) {


    if (this.mixer) {


      this.mixer.timeScale = speed;


    }


  }


}


// ===================================


// CONTROLADOR PRINCIPAL


// ===================================


class CharacterController {


  constructor() {


    this.ui = new UIManager();


    this.ui.createLoadingScreen();


    this.initScene();


    this.initLights();


    this.initGround();


    this.initControls();


    this.initInput();


    this.loader = new FBXLoader();


    this.clock = new THREE.Clock();


    // Estado do personagem


    this.model = null;


    this.mixer = null;


    this.animManager = null;


    this.combatSystem = null;


    // Física


    this.velocity = new THREE.Vector3(0, 0, 0);


    this.isOnGround = true;


    this.isJumping = false;


    this.coyoteTimer = 0;


    this.jumpPhase = "none";


    // Input


    this.keys = {


      forward: false,


      backward: false,


      left: false,


      right: false,


      jump: false,


      run: false,


    };


    // Câmera


    this.cameraOffset = new THREE.Vector3(


      0,


      CONFIG.CAMERA_HEIGHT,


      CONFIG.CAMERA_DISTANCE


    );


    // Colisão


    this.collidableObjects = [];


    this.gui = null;


  }


  initScene() {


    this.scene = new THREE.Scene();


    this.scene.background = new THREE.Color(0x87ceeb);


    this.scene.fog = new THREE.Fog(0x87ceeb, 600, 1200);


    this.camera = new THREE.PerspectiveCamera(


      CONFIG.CAMERA_FOV,


      window.innerWidth / window.innerHeight,


      0.1,


      2000


    );


    this.camera.position.set(0, CONFIG.CAMERA_HEIGHT, CONFIG.CAMERA_DISTANCE);


    this.renderer = new THREE.WebGLRenderer({


      antialias: true,


      powerPreference: "high-performance",


    });


    this.renderer.setSize(window.innerWidth, window.innerHeight);


    this.renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2));


    this.renderer.shadowMap.enabled = true;


    this.renderer.shadowMap.type = THREE.PCFSoftShadowMap;


    this.renderer.outputColorSpace = THREE.SRGBColorSpace;


    document.body.appendChild(this.renderer.domElement);


  }


  initLights() {


    this.dirLight = new THREE.DirectionalLight(0xffffff, 3);


    this.dirLight.position.set(150, 250, 100);


    this.dirLight.castShadow = true;


    const shadowCam = this.dirLight.shadow.camera;


    shadowCam.top = shadowCam.right = 400;


    shadowCam.bottom = shadowCam.left = -400;


    shadowCam.near = 0.1;


    shadowCam.far = 600;


    this.dirLight.shadow.mapSize.set(


      CONFIG.SHADOW_MAP_SIZE,


      CONFIG.SHADOW_MAP_SIZE


    );


    this.dirLight.shadow.bias = -0.0001;


    this.dirLight.shadow.radius = 2;


    this.scene.add(this.dirLight);


    const ambient = new THREE.AmbientLight(0x666666, 2);


    this.scene.add(ambient);


    const hemiLight = new THREE.HemisphereLight(0xffffff, 0x444444, 1.5);


    hemiLight.position.set(0, 300, 0);


    this.scene.add(hemiLight);


  }


  initGround() {


    const groundGeometry = new THREE.PlaneGeometry(2000, 2000);


    const groundMaterial = new THREE.MeshStandardMaterial({


      color: 0x558855,


      roughness: 0.8,


      metalness: 0.2,


    });


    this.ground = new THREE.Mesh(groundGeometry, groundMaterial);


    this.ground.rotation.x = -Math.PI / 2;


    this.ground.receiveShadow = true;


    this.scene.add(this.ground);


    this.gridHelper = new THREE.GridHelper(2000, 100, 0x888888, 0x444444);


    this.gridHelper.position.y = 0.1;


    this.scene.add(this.gridHelper);


  }


  createEnvironmentObjects() {


    const cubeGeometry = new THREE.BoxGeometry(50, 50, 50);


    const positions = [


      [200, 25, 0],


      [-200, 25, 0],


      [0, 25, 200],


      [0, 25, -200],


      [200, 25, 200],


      [-200, 25, -200],


    ];


    positions.forEach((pos, i) => {


      const material = new THREE.MeshStandardMaterial({


        color: new THREE.Color().setHSL(i / positions.length, 0.7, 0.5),


        roughness: 0.5,


        metalness: 0.3,


      });


      const cube = new THREE.Mesh(cubeGeometry, material);


      cube.position.set(...pos);


      cube.castShadow = true;


      cube.receiveShadow = true;


      this.scene.add(cube);


      // Adiciona física ao cubo


      const physicsObj = new PhysicsObject(cube);


      this.combatSystem.addPhysicsObject(physicsObj);


      // Adiciona à lista de objetos colidíveis


      this.collidableObjects.push({


        mesh: cube,


        radius: CONFIG.OBJECT_RADIUS,


      });


    });


  }


  initControls() {


    this.controls = new OrbitControls(this.camera, this.renderer.domElement);


    this.controls.enableDamping = true;


    this.controls.dampingFactor = 0.05;


    this.controls.target.set(0, 100, 0);


    this.controls.minDistance = 150;


    this.controls.maxDistance = 600;


    this.controls.maxPolarAngle = Math.PI / 2 - 0.05;


    this.controls.enablePan = false;


  }


  initInput() {


    document.addEventListener("keydown", (e) => this.onKeyDown(e));


    document.addEventListener("keyup", (e) => this.onKeyUp(e));


    window.addEventListener("resize", () => this.onResize());


    this.ui.createInstructions();


  }


  onKeyDown(e) {


    if (e.repeat) return;


    switch (e.code) {


      case "KeyW":


      case "ArrowUp":


        this.keys.forward = true;


        break;


      case "KeyS":


      case "ArrowDown":


        this.keys.backward = true;


        break;


      case "KeyA":


      case "ArrowLeft":


        this.keys.left = true;


        break;


      case "KeyD":


      case "ArrowRight":


        this.keys.right = true;


        break;


      case "Space":


        e.preventDefault();


        this.keys.jump = true;


        break;


      case "ShiftLeft":


      case "ShiftRight":


        this.keys.run = true;


        break;


      case "KeyR":


        this.resetPosition();


        break;


      case "KeyJ":


        this.attack("punch");


        break;


      case "KeyK":


        this.attack("kick");


        break;


    }


  }


  onKeyUp(e) {


    switch (e.code) {


      case "KeyW":


      case "ArrowUp":


        this.keys.forward = false;


        break;


      case "KeyS":


      case "ArrowDown":


        this.keys.backward = false;


        break;


      case "KeyA":


      case "ArrowLeft":


        this.keys.left = false;


        break;


      case "KeyD":


      case "ArrowRight":


        this.keys.right = false;


        break;


      case "Space":


        this.keys.jump = false;


        break;


      case "ShiftLeft":


      case "ShiftRight":


        this.keys.run = false;


        break;


    }


  }


  onResize() {


    this.camera.aspect = window.innerWidth / window.innerHeight;


    this.camera.updateProjectionMatrix();


    this.renderer.setSize(window.innerWidth, window.innerHeight);


  }


  attack(type) {


    if (!this.combatSystem) return;


    const success = this.combatSystem.tryAttack(type, this.isJumping);


    if (success) {


      this.animManager.findAndPlay(type, false);


    }


  }


  async loadFBX(filename) {


    return new Promise((resolve, reject) => {


      this.loader.load(


        `./models/${filename}`,


        (obj) => resolve(obj),


        (xhr) => {


          const percent = (xhr.loaded / xhr.total) * 100;


          console.log(`📦 ${filename}: ${percent.toFixed(0)}%`);


        },


        (err) => reject(err)


      );


    });


  }


  async loadModelAndAnimations() {


    const animationFiles = [


      "Idle.fbx",


      "Jumping.fbx",


      "jumping-down.fbx",


      "running.fbx",


      "punch.fbx",


      "kick.fbx",


    ];


    try {


      this.ui.updateLoadingProgress(10, "Carregando modelo principal...");


      const mainModel = await this.loadFBX(animationFiles[0]);


      mainModel.scale.setScalar(CONFIG.MODEL_SCALE);


      mainModel.traverse((child) => {


        if (child.isMesh) {


          child.castShadow = true;


          child.receiveShadow = true;


          if (child.material) {


            child.material.needsUpdate = true;


            child.material.side = THREE.FrontSide;


          }


        }


      });


      this.scene.add(mainModel);


      this.model = mainModel;


      this.mixer = new THREE.AnimationMixer(this.model);


      this.animManager = new AnimationManager(this.mixer);


      this.combatSystem = new CombatSystem(this.model, this.scene, this.ui);


      this.ui.updateLoadingProgress(30, "Configurando animações...");


      if (mainModel.animations?.length > 0) {


        const clip = mainModel.animations[0];


        const clipName = this.getClipName(animationFiles[0], clip, 0);


        this.animManager.addAction(clipName, clip);


      }


      const progressStep = 50 / animationFiles.length;


      for (let i = 1; i < animationFiles.length; i++) {


        const filename = animationFiles[i];


        this.ui.updateLoadingProgress(


          30 + progressStep * i,


          `Carregando ${filename}...`


        );


        const obj = await this.loadFBX(filename);


        if (obj.animations?.length > 0) {


          const clip = obj.animations[0];


          const clipName = this.getClipName(filename, clip, i);


          this.animManager.addAction(clipName, clip);


        }


      }


      // Cria objetos com física DEPOIS do combatSystem estar pronto


      this.createEnvironmentObjects();


      this.ui.updateLoadingProgress(90, "Finalizando...");


      this.setupGUI();


      this.ui.updateLoadingProgress(100, "Pronto!");


      setTimeout(() => this.ui.hideLoadingScreen(), 500);


      console.log("🎉 Sistema de combate carregado!");


    } catch (err) {


      console.error("❌ Erro ao carregar assets:", err);


      this.ui.updateLoadingProgress(


        0,


        "Erro ao carregar! Verifique o console."


      );


    }


  }


  getClipName(filename, clip, index) {


    const baseName = filename.replace(".fbx", "");


    return `${baseName}_${clip.name || `Anim_${index}`}`;


  }


  updateJumpAnimation() {


    if (!this.model || !this.animManager) return;


    const velocityY = this.velocity.y;


    if (velocityY > CONFIG.JUMP_UP_THRESHOLD && this.jumpPhase !== "rising") {


      this.jumpPhase = "rising";


      this.animManager.findAndPlay("jumping", false);


    } else if (


      velocityY < CONFIG.JUMP_DOWN_THRESHOLD &&


      this.jumpPhase !== "falling"


    ) {


      this.jumpPhase = "falling";


      this.animManager.findAndPlay("jumping-down", false);


    }


  }


  tryJump() {


    const canJump =


      (this.isOnGround || this.coyoteTimer > 0) && !this.isJumping;


    if (canJump) {


      this.velocity.y = CONFIG.JUMP_VELOCITY;


      this.isOnGround = false;


      this.isJumping = true;


      this.jumpPhase = "rising";


      this.coyoteTimer = 0;


      this.animManager.findAndPlay("jumping", false);


    }


  }


  updateMovement(delta) {


    if (!this.model) return;


    if (!this.isOnGround && this.coyoteTimer > 0) {


      this.coyoteTimer -= delta;


    }


    // Aplicar gravidade


    this.velocity.y = Math.max(


      this.velocity.y + CONFIG.GRAVITY * delta,


      CONFIG.MAX_FALL_SPEED


    );


    // Processar pulo


    if (this.keys.jump && !this.isJumping) {


      this.tryJump();


      this.keys.jump = false;


    }


    // Atualiza animação de pulo


    this.updateJumpAnimation();


    // Movimento horizontal


    const speedMultiplier = this.keys.run ? CONFIG.RUN_SPEED_MULTIPLIER : 1;


    const moveSpeed = CONFIG.MOVEMENT_SPEED * speedMultiplier * delta;


    const moveDir = new THREE.Vector3(0, 0, 0);


    let isMoving = false;


    if (this.keys.forward) {


      moveDir.z -= 1;


      isMoving = true;


    }


    if (this.keys.backward) {


      moveDir.z += 1;


      isMoving = true;


    }


    if (this.keys.left) {


      moveDir.x -= 1;


      isMoving = true;


    }


    if (this.keys.right) {


      moveDir.x += 1;


      isMoving = true;


    }


    if (moveDir.lengthSq() > 0) {


      moveDir.normalize();


      // Rotação suave em direção ao movimento


      const targetAngle = Math.atan2(moveDir.x, moveDir.z);


      const currentAngle = this.model.rotation.y;


      let angleDiff = targetAngle - currentAngle;


      // Normaliza para o caminho mais curto


      while (angleDiff > Math.PI) angleDiff -= Math.PI * 2;


      while (angleDiff < -Math.PI) angleDiff += Math.PI * 2;


      // Aplica rotação suave


      this.model.rotation.y += angleDiff * CONFIG.ROTATION_SPEED * delta;


      // Calcula nova posição


      const moveDist = moveSpeed;


      const newX = this.model.position.x + Math.sin(targetAngle) * moveDist;


      const newZ = this.model.position.z + Math.cos(targetAngle) * moveDist;


      // Verifica colisão antes de mover


      const newPos = new THREE.Vector3(newX, this.model.position.y, newZ);


      if (!this.checkCollision(newPos)) {


        this.model.position.x = newX;


        this.model.position.z = newZ;


      } else {


        // Tenta deslizar ao longo da parede


        const slideX = new THREE.Vector3(


          newX,


          this.model.position.y,


          this.model.position.z


        );


        const slideZ = new THREE.Vector3(


          this.model.position.x,


          this.model.position.y,


          newZ


        );


        if (!this.checkCollision(slideX)) {


          this.model.position.x = newX;


        } else if (!this.checkCollision(slideZ)) {


          this.model.position.z = newZ;


        }


      }


    }


    // Trocar animação (exceto durante pulo ou ataque)


    if (


      !this.isJumping &&


      this.combatSystem.attackState.punch.canAttack &&


      this.combatSystem.attackState.kick.canAttack


    ) {


      if (isMoving) {


        this.animManager.findAndPlay("running");


      } else {


        this.animManager.findAndPlay("idle");


      }


    }


    // Aplicar velocidade vertical


    this.model.position.y += this.velocity.y * delta;


    // Colisão com chão


    if (this.model.position.y <= CONFIG.GROUND_LEVEL) {


      this.model.position.y = CONFIG.GROUND_LEVEL;


      this.velocity.y = 0;


      if (this.isJumping) {


        this.isJumping = false;


        this.jumpPhase = "none";


      }


      this.isOnGround = true;


      this.coyoteTimer = CONFIG.COYOTE_TIME;


    } else {


      if (this.isOnGround) {


        this.coyoteTimer = CONFIG.COYOTE_TIME;


      }


      this.isOnGround = false;


    }


  }


  checkCollision(newPosition) {


    // Verifica colisão com todos os objetos colidíveis


    for (let i = 0; i < this.collidableObjects.length; i++) {


      const obj = this.collidableObjects[i];


      // Ignora objetos invisíveis (destruídos)


      if (!obj.mesh.visible) continue;


      const objPos = obj.mesh.position;


      const distance = new THREE.Vector2(


        newPosition.x - objPos.x,


        newPosition.z - objPos.z


      ).length();


      const minDistance = CONFIG.CHARACTER_RADIUS + obj.radius;


      if (distance < minDistance) {


        return true; // Colisão detectada


      }


    }


    return false; // Sem colisão


  }


  updateCamera() {


    if (!this.model) return;


    const targetPos = this.model.position.clone();


    const targetLookAt = targetPos.clone();


    targetLookAt.y += 100;


    this.controls.target.lerp(targetLookAt, CONFIG.CAMERA_FOLLOW_SMOOTHNESS);


  }


  resetCamera() {


    this.camera.position.set(0, CONFIG.CAMERA_HEIGHT, CONFIG.CAMERA_DISTANCE);


    this.controls.target.set(0, 100, 0);


  }


  resetPosition() {


    if (this.model) {


      this.model.position.set(0, 0, 0);


      this.model.rotation.set(0, 0, 0);


      this.velocity.set(0, 0, 0);


      this.isJumping = false;


      this.jumpPhase = "none";


      this.animManager.findAndPlay("idle");


    }


    this.resetCamera();


  }


  setupGUI() {


    this.gui = new GUI();


    this.gui.title("⚔️ Controles de Combate");


    const animNames = this.animManager.getActionNames();


    if (animNames.length === 0) return;


    const guiControls = {


      animation: animNames[0],


      speed: 1.0,


      lightIntensity: 3,


      shadowsEnabled: true,


      showGrid: true,


      debugVisualization: false,


      showColliders: false,


      punchRange: CONFIG.ATTACK.PUNCH.MAX_RANGE,


      kickRange: CONFIG.ATTACK.KICK.MAX_RANGE,


      jump: () => this.tryJump(),


      punch: () => this.attack("punch"),


      kick: () => this.attack("kick"),


      resetCamera: () => this.resetCamera(),


      resetPosition: () => this.resetPosition(),


    };


    // Pasta de Animações


    const animFolder = this.gui.addFolder("🎬 Animações");


    animFolder


      .add(guiControls, "animation", animNames)


      .name("Animação")


      .onChange((n) => this.animManager.play(n));


    animFolder


      .add(guiControls, "speed", 0.1, 3, 0.1)


      .name("Velocidade")


      .onChange((v) => this.animManager.setSpeed(v));


    animFolder.add(guiControls, "jump").name("⬆️ Pular");


    // Pasta de Combate


    const combatFolder = this.gui.addFolder("⚔️ Combate");


    combatFolder.add(guiControls, "punch").name("👊 Soco (J)");


    combatFolder.add(guiControls, "kick").name("🦵 Chute (K)");


    combatFolder


      .add(guiControls, "punchRange", 50, 200, 10)


      .name("Alcance Soco")


      .onChange((v) => (CONFIG.ATTACK.PUNCH.MAX_RANGE = v));


    combatFolder


      .add(guiControls, "kickRange", 80, 250, 10)


      .name("Alcance Chute")


      .onChange((v) => (CONFIG.ATTACK.KICK.MAX_RANGE = v));


    combatFolder


      .add(guiControls, "debugVisualization")


      .name("Debug Visual")


      .onChange((v) => {


        if (this.combatSystem.debugMesh) {


          this.combatSystem.debugMesh.visible = v;


        }


      });


    combatFolder


      .add(guiControls, "showColliders")


      .name("Mostrar Colisões")


      .onChange((v) => this.toggleColliderVisualization(v));


    combatFolder.open();


    // Pasta de Visual


    const visualFolder = this.gui.addFolder("💡 Visual");


    visualFolder


      .add(guiControls, "lightIntensity", 0, 10, 0.5)


      .name("Intensidade da Luz")


      .onChange((v) => (this.dirLight.intensity = v));


    visualFolder


      .add(guiControls, "shadowsEnabled")


      .name("Sombras")


      .onChange((v) => {


        this.renderer.shadowMap.enabled = v;


        this.dirLight.castShadow = v;


      });


    visualFolder


      .add(guiControls, "showGrid")


      .name("Mostrar Grade")


      .onChange((v) => {


        this.gridHelper.visible = v;


      });


    // Pasta de Personagem


    const charFolder = this.gui.addFolder("🎮 Personagem");


    charFolder.add(guiControls, "resetCamera").name("🔄 Resetar Câmera");


    charFolder.add(guiControls, "resetPosition").name("🔄 Resetar Posição");


    // Inicia com a primeira animação


    this.animManager.play(animNames[0]);


  }


  toggleColliderVisualization(show) {


    // Remove visualizações anteriores


    if (this.colliderHelpers) {


      this.colliderHelpers.forEach((helper) => this.scene.remove(helper));


    }


    this.colliderHelpers = [];


    if (show) {


      // Adiciona círculo para o personagem


      const charGeometry = new THREE.CircleGeometry(


        CONFIG.CHARACTER_RADIUS,


        32


      );


      const charMaterial = new THREE.MeshBasicMaterial({


        color: 0x00ff00,


        transparent: true,


        opacity: 0.3,


        side: THREE.DoubleSide,


      });


      const charHelper = new THREE.Mesh(charGeometry, charMaterial);


      charHelper.rotation.x = -Math.PI / 2;


      charHelper.position.y = 1;


      this.model.add(charHelper);


      this.colliderHelpers.push(charHelper);


      // Adiciona círculos para os objetos


      this.collidableObjects.forEach((obj) => {


        const objGeometry = new THREE.CircleGeometry(obj.radius, 32);


        const objMaterial = new THREE.MeshBasicMaterial({


          color: 0xff0000,


          transparent: true,


          opacity: 0.3,


          side: THREE.DoubleSide,


        });


        const objHelper = new THREE.Mesh(objGeometry, objMaterial);


        objHelper.rotation.x = -Math.PI / 2;


        objHelper.position.y = 1;


        obj.mesh.add(objHelper);


        this.colliderHelpers.push(objHelper);


      });


    }


  }


  animate = () => {


    requestAnimationFrame(this.animate);


    const delta = Math.min(this.clock.getDelta(), 0.1);


    if (this.animManager) {


      this.animManager.update(delta);


    }


    if (this.combatSystem) {


      this.combatSystem.update(delta);


    }


    this.updateMovement(delta);


    this.updateCamera();


    this.controls.update();


    this.renderer.render(this.scene, this.camera);


  };


  async init() {


    await this.loadModelAndAnimations();


    this.animate();


  }


}


// ===================================


// EXECUTAR


// ===================================


const controller = new CharacterController();


controller.init().catch((err) => {


  console.error("❌ Erro :", err);


  const loader = document.getElementById("loading-screen");


  if (loader) {


    loader.querySelector("#loading-text").textContent =


      "Erro ao carregar! Verifique se os arquivos FBX estão na pasta ./models/";


  }


});













Você pode visualizar o jogo no link abaixo:


Game Exemplo com TreeJs





Deixo aqui um vídeo curto do Jogo:






















Conclusão


O Three.js mostra que criar jogos ou animações 3D com poucas linhas de código é mais simples e acessível do que parece.

Com um pouco de criatividade e curiosidade, qualquer pessoa pode transformar o seu site ou blog em um mundo cheio de luzes, cores e movimento.







Código fonte do jogo em Javascript:


Código Fonte
























			Você pode gostar também












								Guia de Mini Teclados Mecânicos








								Guia de Mini Teclados Mecânicos!







				C. Junior














								A Book Friday Amazon Está Chegando!








								A Book Friday Amazon Está Chegando!







				C. Junior

















								Como utilizar skip Stream







				C. Junior























Deixe um comentário
O seu endereço de e-mail não será publicado. Campos obrigatórios são marcados com *
